Farm Machinery Tractor Disc Harrow

Farm Machinery Tractor Disc Harrow

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/P,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1994-09-30
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  2.5
  • Place of Origin:  china
  • Brand Name:  dadi
  • Model Number:  many
  • Weight: 1700.000 kg

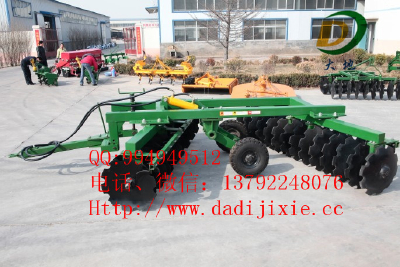

Their discs have been divided into front and rear two gangs notched discs, the dislocation of the design for front and rear disc gang, and disc gang on both sides of V to disc overall non-symmetrical, work Angle can be adjusted ,the surface of the field after harrowing is level and the crushing and clearing ability of the harrow is satisfactory.


  • Size:  2.5
  • Place of Origin:  china
  • Brand Name:  dadi
  • Model Number:  many
  • Weight: 1700.000 kg

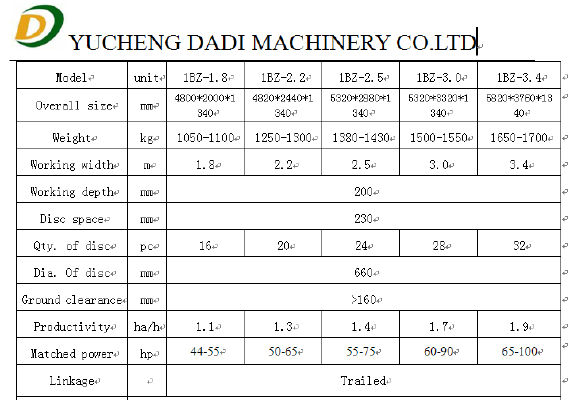

Model

unit

1BZ-1.8

1BZ-2.2

1BZ-2.5

1BZ-3.0

1BZ-3.4

Overall size

mm

4800*2000*1340

4820*2440*1340

5320*2880*1340

5320*3320*1340

5820*3760*1340

Weight

kg

1050-1100

1250-1300

1380-1430

1500-1550

1650-1700

Working width

m

1.8

2.2

2.5

3.0

3.4

Working depth

mm

200

Disc space

mm

230

Qty. of disc

pc

16

20

24

28

32

Dia. Of disc

mm

660

Ground clearance

mm

>160

Productivity

ha/h

1.1

1.3

1.4

1.7

1.9

Matched power

hp

44-55

50-65

55-75

60-90

65-100

Linkage


Trailed
